পণ্যের বিবরণ:
প্রদান:
|
পণ্যের নাম: | স্ট্রিং সরঞ্জাম গ্রাউন্ড অ্যাঙ্কর | রঙ: | কালো, লাল, নীল |
---|---|---|---|
মডেল: | SDM3-SDM16 | পাদান: | ইস্পাত |
ধারণক্ষমতা: | 3T-16T | আদর্শ: | স্ট্রিং সরঞ্জাম |
আবেদন: | অস্থায়ীভাবে অ্যাঙ্কারে প্রয়োগ করুন | ওজন: | 22.5-105kg |
পাওয়ার ইরেকশন নির্মাণ ট্র্যাকশন লিফটিং ফ্লোর অ্যাঙ্করিং স্ট্রিং সরঞ্জাম সরঞ্জাম গ্রাউন্ড অ্যাঙ্কর

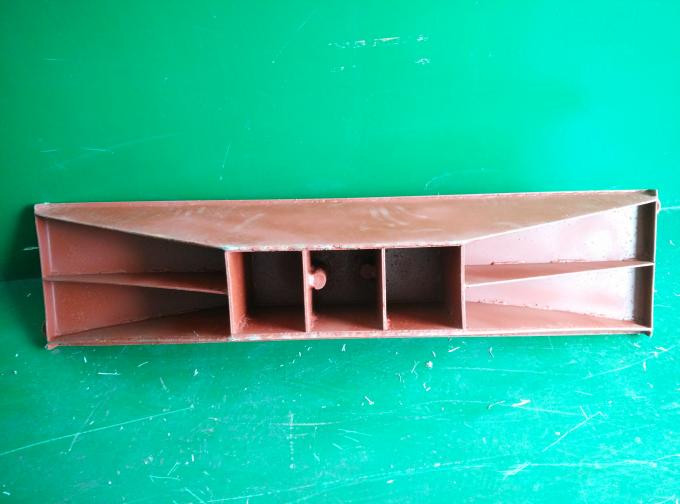

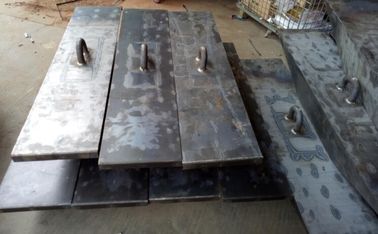

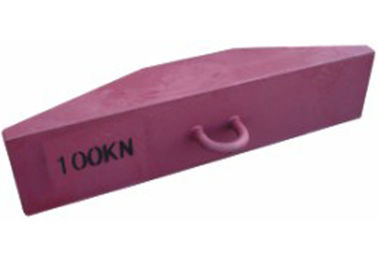

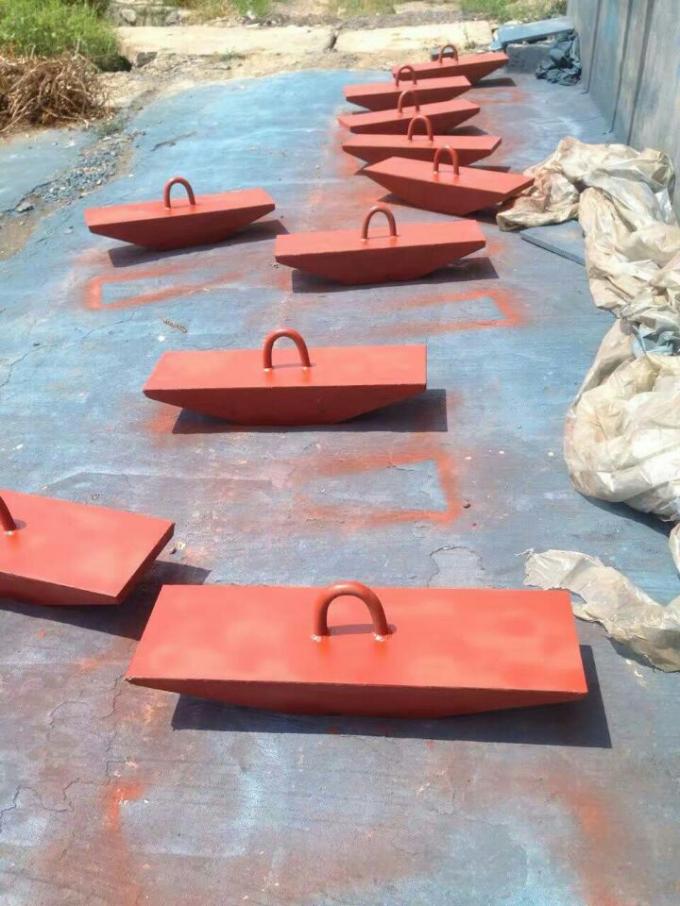

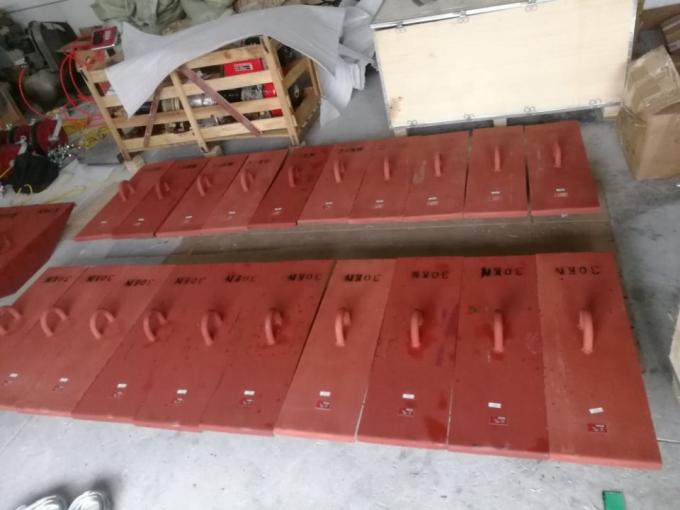

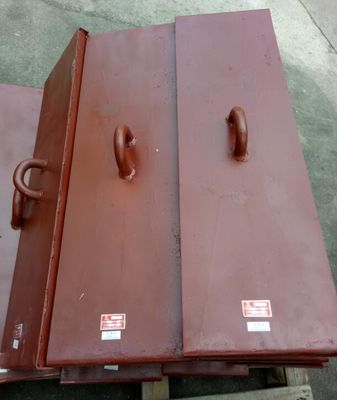

Application This ground anchor is applied to fixing and fastening the winches, conductor pullers, conductor tensioners, blocks and temporary pulling ropes in line construction. অ্যাপ্লিকেশন এই গ্রাউন্ড অ্যাঙ্করটি উইঞ্চগুলি, কন্ডাক্টর পুলারগুলি, কন্ডাক্টর টেনশনারগুলি, ব্লকগুলি এবং লাইন নির্মাণে অস্থায়ী টানানো দড়িগুলিকে স্থিরকরণ এবং বেঁধে দেওয়ার জন্য প্রয়োগ করা হয়। The anchor is of welded structure of steel plate with corrosion-resistant primer on its surface, and it is durable in its quality. অ্যাঙ্করটি তার পৃষ্ঠের জারা-প্রতিরোধী প্রাইমার সহ ইস্পাত প্লেটের ldালাই কাঠামোর, এবং এটি এর মানের ক্ষেত্রে টেকসই। Bury the anchor under the ground in appropriate depth and make it well tamped, lead the steel rope which fixed on it to its direction upon the ground. উপযুক্ত গভীরতায় মাটির নীচে অ্যাঙ্করটি কবর দিন এবং এটি ভালভাবে টেম্পেড করুন, স্টিলের দড়িটি স্থির করুন যা তার উপর স্থলভাগের দিকে এটি স্থির করে রেখেছে।
ব্যবহার
Excavate ground anchors pit according to the required depth. প্রয়োজনীয় গভীরতা অনুসারে খনন গ্রাউন্ড অ্যাঙ্কারস পিট। Put the anchor in the ground anchors pit.Anchor the anchor rope and the ground anchor,and oblique to the elicitation. অ্যাঙ্করটিকে গ্রাউন্ড অ্যাঙ্কার্স পিটে রাখুন the অ্যাঙ্কর দড়ি এবং গ্রাউন্ড অ্যাঙ্করটি সংযুক্ত করুন, এবং বামনটির জন্য তির্যক করুন। When the fill is tamped,it can be used. ভরাটটি যখন টেম্পেড হয় তখন এটি ব্যবহার করা যায়।
প্রযুক্তিগত তথ্য
আইটেম নম্বর | মডেল |
সম্ভবপর খিঁচ (কে এন) |
বৈধ গভীরতা (ড) | প্রধান আকার (মিমি) | ওজন (কেজি) | |||
একজন | বি | সি | ঘ | |||||
02120 | SDM3 | 30 | 1.8 | 800 | 250 | 150 | Φ25 | 22.5 |
02121 | SDM5 | 50 | 1.8 | 900 | 270 | 180 | Φ28 | 30 |
02122 | SDM10 | 100 | 2.0 | 1200 | 290 | 220 | Φ36 | 55 |
02123 | SDM16 | 160 | 2.5 | 1500 | 500 | 258 | / | 105 |
